HC Feng

HC Feng equipment meets the challenge of maintaining the costs of wastewater treatment and recovery, as well as the expense of replacing cutting fluids. HC Feng products comply with sustainable development according to ESG (Environmental, Social, and Governance) criteria, as they aim to be environmentally friendly and reduce carbon emissions in the industry.

Filtración de partículas de hasta 0,4 mm
Separación de aceite residual con mínima humedad
Esterilización de contaminantes con purificador de ozono
Monitorización del valor de pH
Sin consumibles
Bajo mantenimiento
Piezas modulares y peso ligero

Ahorro de energía y sostenibilidad

Model:

BEST-1

Dimensions:

520*410*880mm

Storage Capacity:

35L

Net Weight:

45kg

Power:

Single Phase.220V/110VAC 50/60HZ 0.042Kw

Energy Consumption:

1 KWH of electricity in 24 hours

Suction Capacity:

10-30 L /Minute

Ionic generator capacity:

500 mg/h

(Produces 500 mg of ozone per hour)

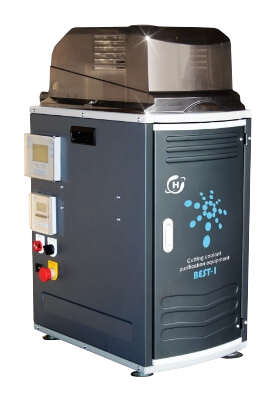

Oil Skimmer

Best-1

Oil Skimmer,refrigerant purification equipment


The Best-1 ozone purifier directly attacks bacterial growth and micro contaminants, effectively extending the life of the refrigerant and reducing the need for replacements.

Quote


Filters all types of chips, including non-magnetic ones.
Applicable to both pure oil coolants and water-soluble coolants.
Hermetic quick-drying function for comfortably recycling chips.
Optional filtration precision.

Model:

FOODIE

Dimensions:

420*600*900mm

Filter Capacity:

12L

Net Weight:

56kg

Maximum pump capacity:

90 - 180 L/Minute (tested with water)

Air pressure:

0.5 Bar - 8.3 Bar (7.25 Psi - 120 Psi)

Filter:

380 ㎛ / 180 ㎛ / 830 ㎛

Filter material:

Stainless Steel 304

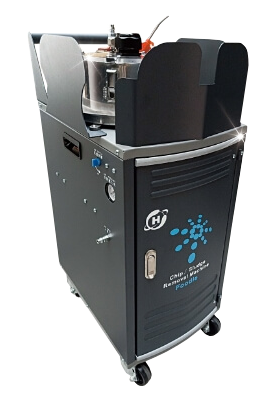

Foodie

Chip and sludge removal machine


No downtime, no consumables or electricity. Quickly processes and recycles floating surface waste, fine waste to the bottom, sludge, and other sediments, significantly and effectively saving time and cost in cleaning the coolant tank.

Quote

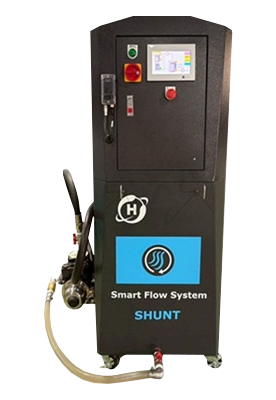

Automatic coolant mixing and replenishing system(Smart Flow system)


Replenishing cutting coolant and manually adjusting the concentration takes time and increases costs if too much cutting fluid is added. On the other hand, insufficient concentration deteriorates the equipment; with Smart Flow, Shunt does it automatically and accurately.

Cotizar

Filtration of impurities from tap water, resin filtration, and activated carbon filtration.
Ozone sterilization.
Oil and water mixing pump with cutting fluid mixing accuracy of 0-10%.
Stirring device to prevent water stagnation.
Oil tank level gauge.
Smart flow system.
The supply line can be up to 20 m long for various CNC machining centers.

Model:

SHUNT

Net weight:

183 Kg

Dimensions:

(L*W*H) 900*1000*1610 mm

Tank capacity:

Tap water: 125L / Mixing tank: 155L

Filter materials:

1-PP fiber; 2-resin; 3-activated carbon

Voltage:

220V.AC 50HZ

Power consumption:

500 W/h for continuous operation (the unit is configured for indirect operation)

Ozone:

500mg/hr

Water inlet:

10L/Min

Fluid outlet:

40L/Min; 80L/Min Max

Mixing pump output:

0.17 ~50L/Min (10-3000L/hr)

Shunt

Extracts fine and magnetic sludge, such as cast iron dust.
Applicable to both pure oil and water-soluble coolants.
Centrifugal filter.
Magnetic separation of 5200 Gauss.
Filtration of up to 5 microns.

Model:

FOODIE II

Dimensions:

750*600*1250 mm

Filter Capacity:

5.5L

Net Weight:

77kg

Maximum pump capacity:

45 - 90 L/Minute

Air pressure:

0.5 Bar - 8.3 Bar (7.25 Psi - 120 Psi)

Voltage:

Single-phase 110 V/220 V, 60/50 Hz

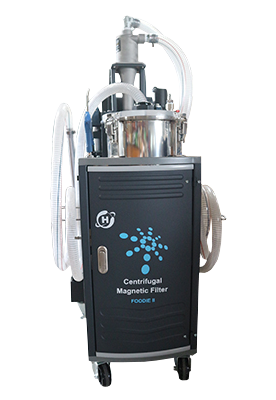

Foodie II

Chip and sludge removal machineno installation required


No downtime, no consumables or electricity. Quickly processes and recycles floating surface waste, fine waste to the bottom, sludge, and other sediments, significantly and effectively saving time and cost in cleaning the coolant tank.

Quote


Separation of residual oil from coolant.
No consumables and low maintenance Air-powered. Flexible upgrade with optional parts.
Control Panelwith power supply capability of 110V/220V AC 60/50Hz.

Oil Removal Deviceto transfer dirty oil from the inner tank to the used oil tank and reduce moisture content. (Must be purchased with the Control Panel).

Ozone Devicefor sterilization effects and to improve the odor of the cutting fluid. (Must be purchased with the Control Panel).

Model:

BEST-MINI

Dimensions:

530*350*640 mm

Filter Capacity:

16L

Net Weight:

29 kg

Initial Pump Pressure:

3 kg

Suction Capacity:

10-30 L/Minute

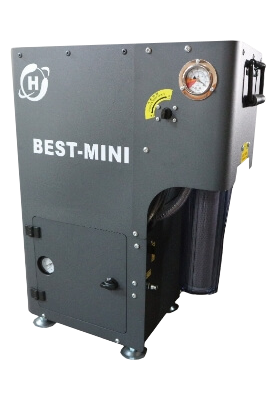

Best-Mini

Oil separator withbasic filtration functions and residual oil removal


Batch filtration and oil-water separation, removal of floating oil from the surface of the coolant. Model with a lightweight and compact structure, easy to install.

Quote
