Optical equipment and multisensor equipment for laboratories and workshops, which benefit competitiveness and quality of production, with software options for different tasks and additives to optimize processes, for all budgets.Standard products available in a wide range that can be customized upon request.

Measurement Field:

400 x 400 mm x 200 mm

Maximum Load Size:

800 x 800 mm / 1,300 x 900 mm

20 kg on glass stage

200 kg on granite tray

Precision:


Optical (1D)

Optical (2D)

Touch (1D)

Touch (2D)

Touch (3D)



(0.9 + L / 600 mm) μm

(1.2 + L / 500 mm) μm

(0.9 + L / 600 mm) μm

(1.2 + L / 500 mm) μm

(1.9 + L / 400 mm) μm

Stable design and High Resolution CCD camera


Controla, mide y analiza con el mismo Software. Módulos opcionales: Palpador táctil o sonda de scanneo, láser medidor, láser dedicado a la conoscopía y cabeza rotativa para funciones adicionales en la inspección dimensional 3D.

Quote

3D cubic multisensor

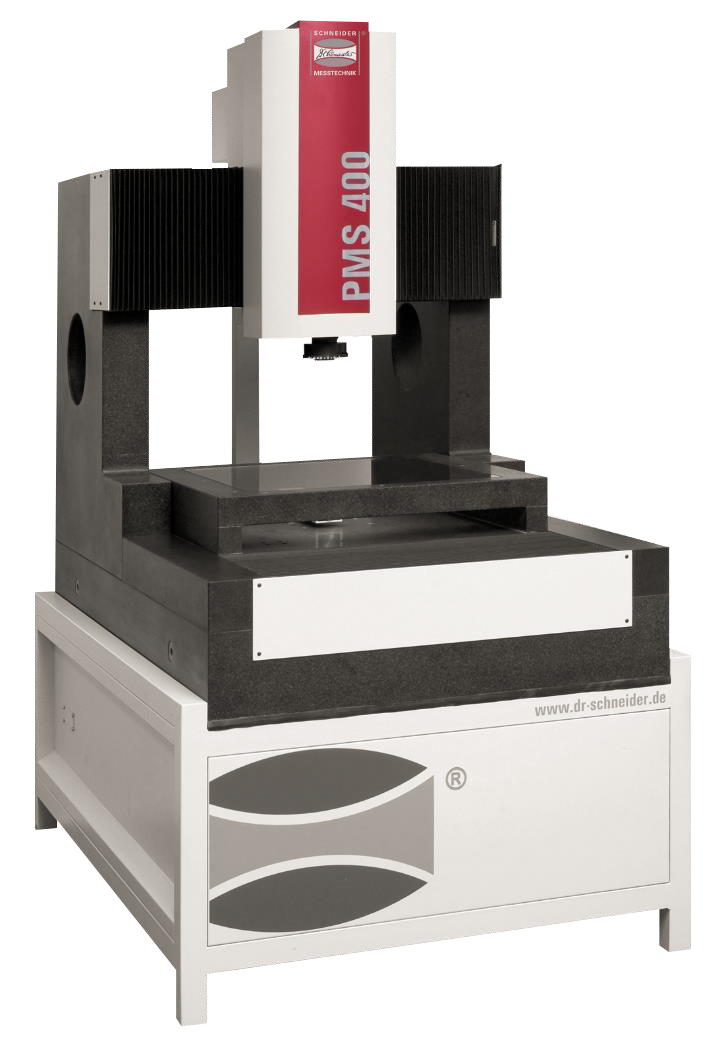

PMS 400

Rotation module fully integrated


Options: Motorized lens with coaxial illumination, TP200 probe, SP25 scanner, motorized rotating head PH10, confocal sensor, triangulation laser for measuring heights and contours, BestFit (2D and 3D) and thermal compensation.

Quote

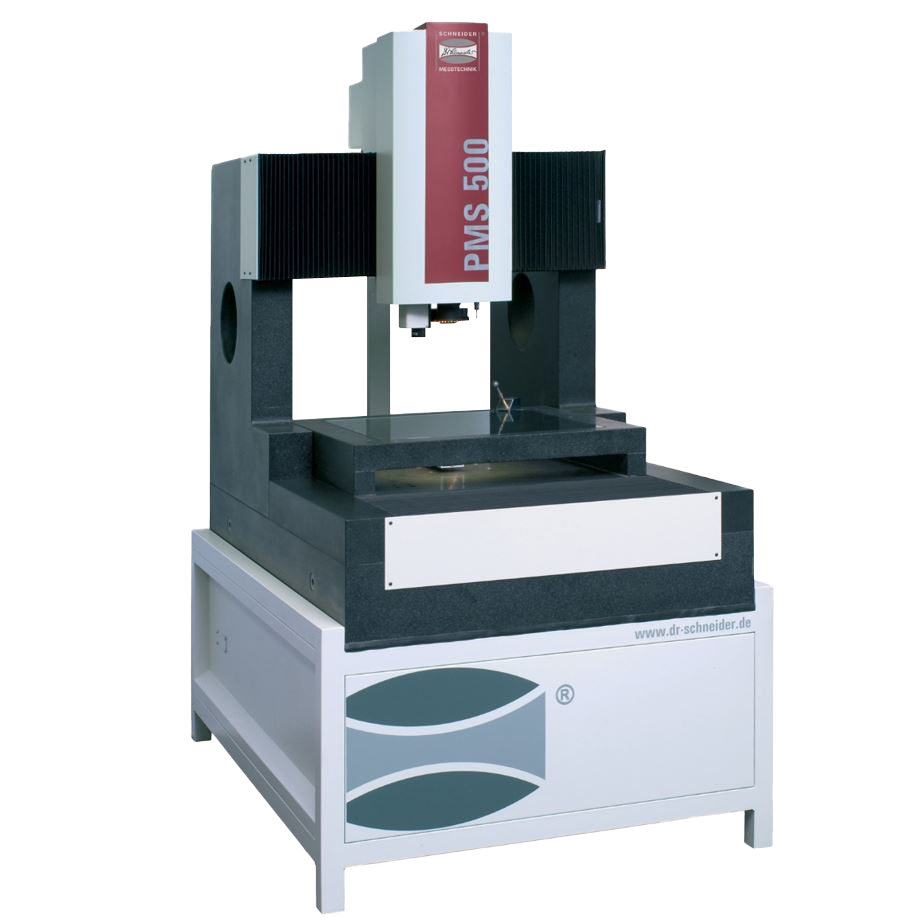

PMS 500

​

Measurement Field:

500 x 500 mm x 300 mm

Maximum Load Size:

800 x 800 mm / 1,300 x 900 mm

20 kg on glass stage

200 kg on granite tray

Precision:


Optical (1D)

Optical (2D)

Touch (1D)

Touch (2D)

Touch (3D)



(0.9 + L / 600 mm) μm

(1.2 + L / 500 mm) μm

(0.9 + L / 600 mm) μm

(1.2 + L / 500 mm) μm

(1.9 + L / 400 mm) μm

Modular


Checks thicknesses of glass objects, lenses or medical ampoules, light-absorbing objects with matte black surfaces or free-form surfaces that require non-contact metrological procedures.

Quote

Measurement Field:

600 x 600 mm x 300 mm

Maximum Load Size:

800 x 800 mm / 1,300 x 900 mm

20 kg on glass stage

200 kg on granite tray

Precision:


Optical (1D)

Optical (2D)

Touch (1D)

Touch (2D)

Touch (3D)



(0.9 + L / 600 mm) μm

(1.2 + L / 500 mm) μm

(0.9 + L / 600 mm) μm

(1.2 + L / 500 mm) μm

(1.9 + L / 400 mm) μm

PMS 600

Rotation module fully integrated


Options:Motorized lens with coaxial illumination, TP200 probe, SP25 scanner, motorized rotating head PH10, confocal sensor, triangulation laser for measuring heights and contours, BestFit (2D and 3D) and thermal compensation.

Quote

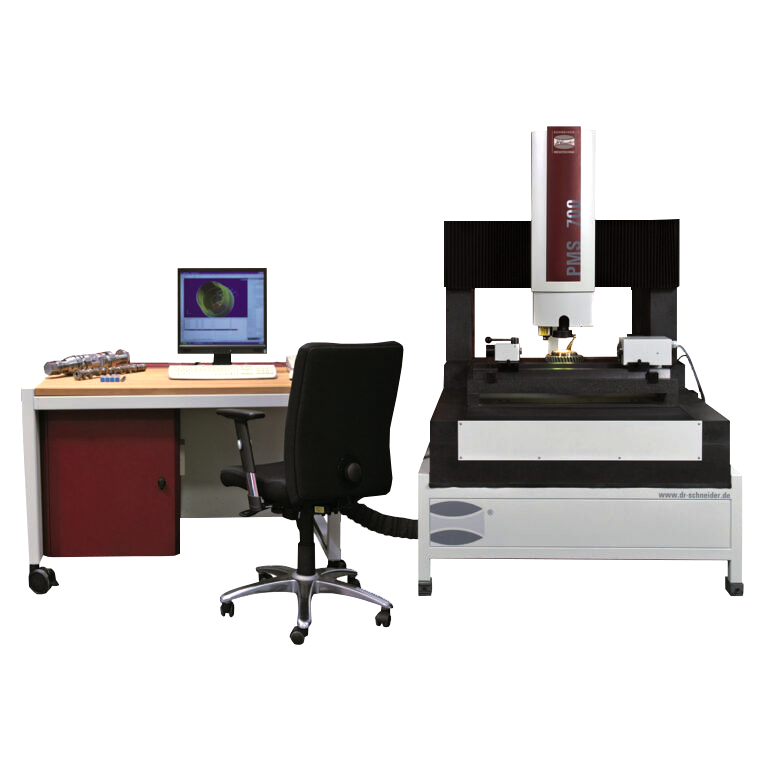

PMS 700

​

Measurement Field:

700 x 700 mm x 300 mm

Maximum Load Size:

800 x 800 mm / 1,300 x 900 mm

20 kg on Glass Stage

200 kg on Granite Tray

Precision:


Optical (1D)

Optical (2D)

Touch (1D)

Touch (2D)

Touch (3D)



(0.9 + L / 600 mm) μm

(1.2 + L / 500 mm) μm

(0.9 + L / 600 mm) μm

(1.2 + L / 500 mm) μm

(1.9 + L / 400 mm) μm

Measuring field:

400 x 200 mm x 200 mm (Z)

Maximum size:

13.9 x 9 mm

15 kg on glass stage

Precision:

Optical (1D)

Optical (2D)

Touch (1D)

​

(1.9 + L / 100 mm) μm

(2.9 + L / 100 mm) μm

(3.9 + L / 100 mm) μm

Measurements that meet standards


Options: Motorized lens with coaxial illumination, TP200 probe, SP25 scanner, motorized rotating head PH10, confocal sensor, triangulation laser for measuring heights and contours, BestFit (2D and 3D) and thermal compensation.

Quote

2D Multisensor

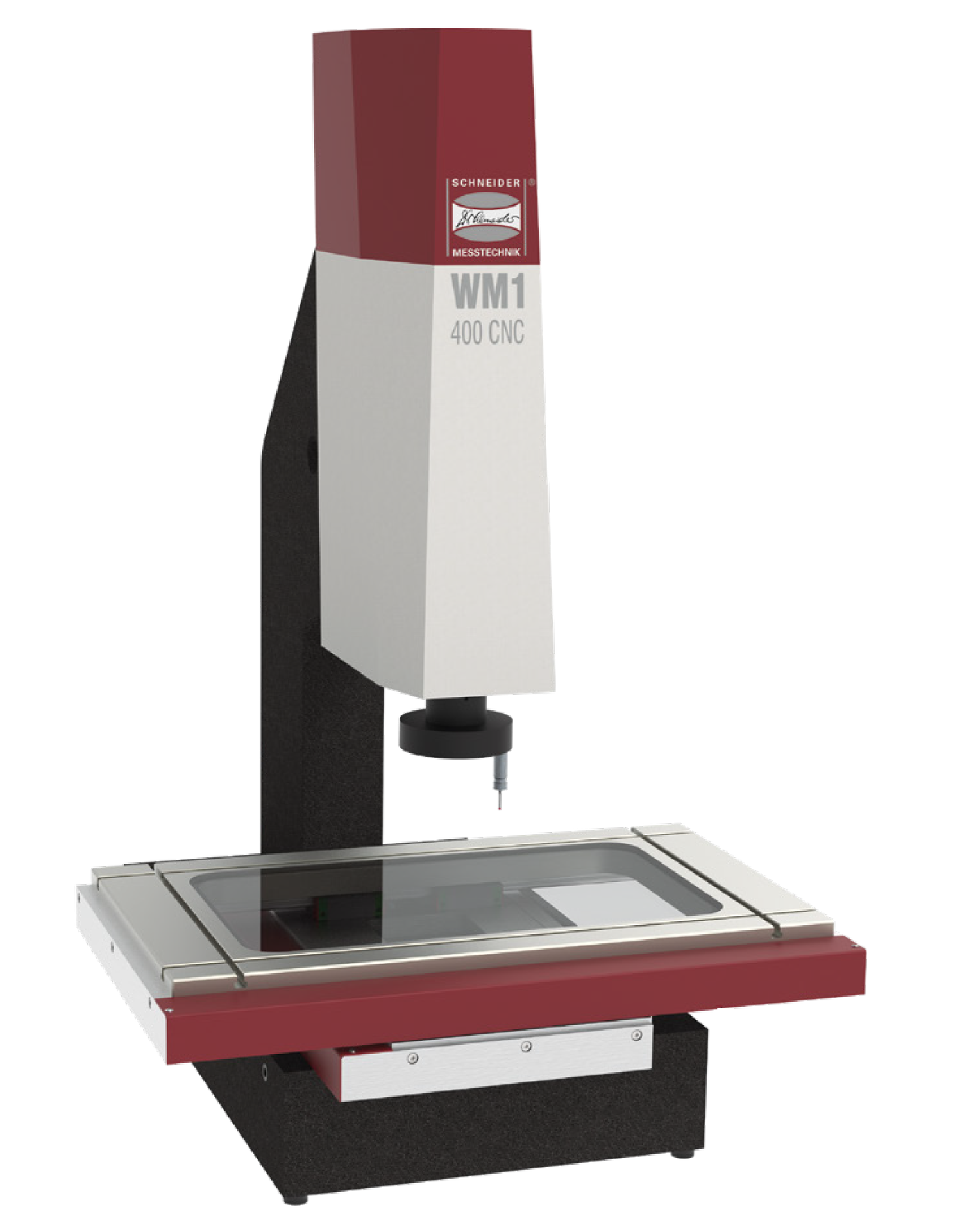

WM1 400

Designed for large components


Optional: Manual zoom objective from 0.7x to 4.5x with focused coaxial light illumination, TP200 probe, SP25 scanner, motorized rotary head PH10, confocal sensor, triangulation laser for measuring heights and contours

Quote

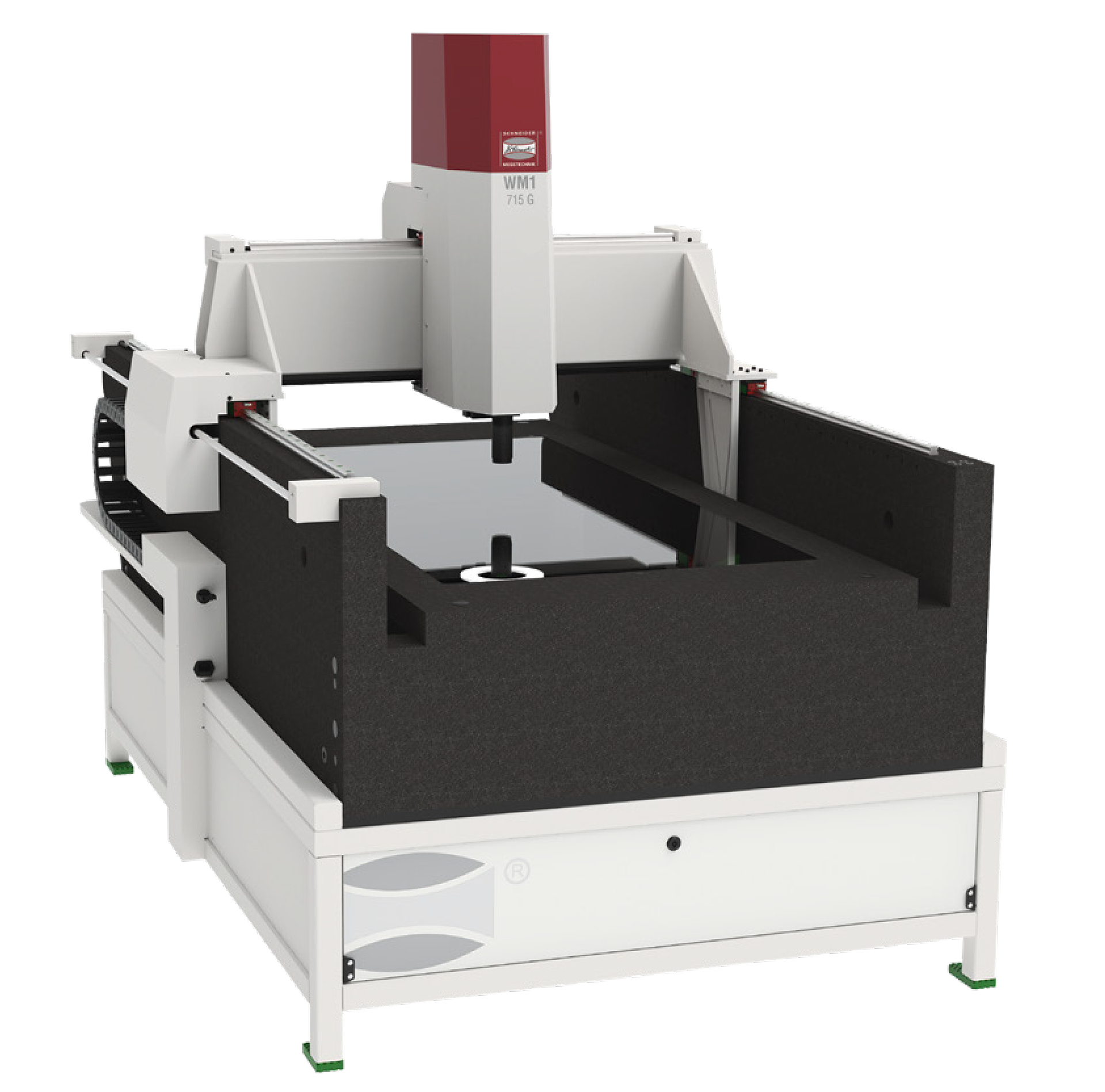

WM1 715 G

​

Measuring field:

700 x 1,500 mm x 200 mm (Z)

Maximum size:

8.9 x 6.5 – 0.9 x 0.6 mm

20 kg on glass stage

Precision:

Optical (2D)

Touch (1D)

​

(2.9 + L / 100 mm) μm

(3.9 + L / 100 mm) μm

All the functions of the measurement software in a wireless operating unit


Smart combination with joystick and tablet for perfect control of the tactile measurement machine. Wireless operation using a virtual motion joystick for the x/y or z axes.

Quote

JoyPad

3D Touch
