Metrios
Optical measurement equipment designed to be installed in the production workshop, with specialized functions and easy programming for quick and accurate measurements. It is "press and play" and delivers traceable results with an accuracy of 2 microns in customizable digital reports automatically created in its software.

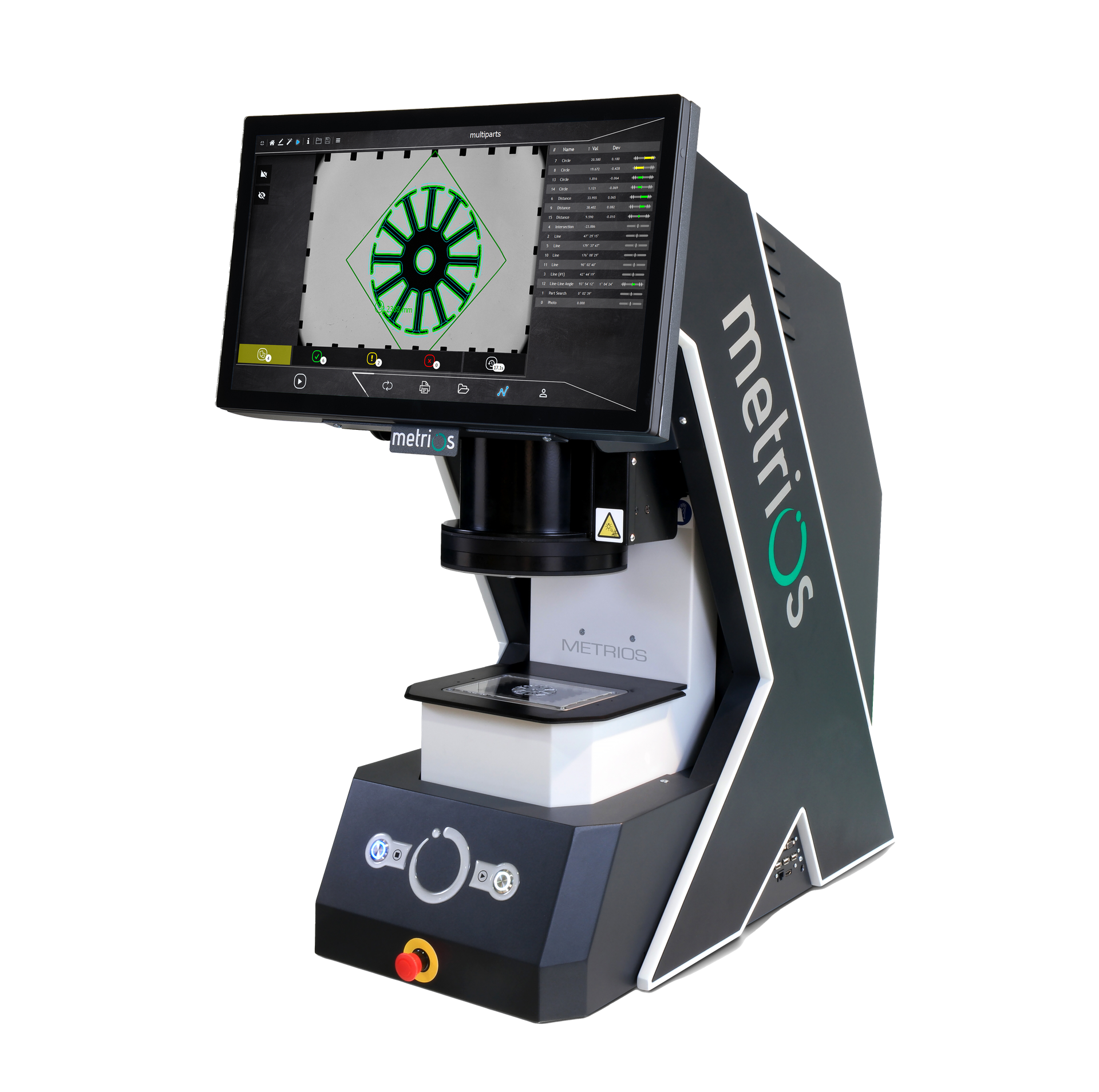

Metrios
The natural evolution of the profile projector and the shortest path to digitizing and automating your business. With this alternative, there is no operator influence on the results.
Metrios HD
For small, hard-to-handle components and large parts with barely visible details. The size of the work area allows hundreds of elements to be placed freely on its stage.

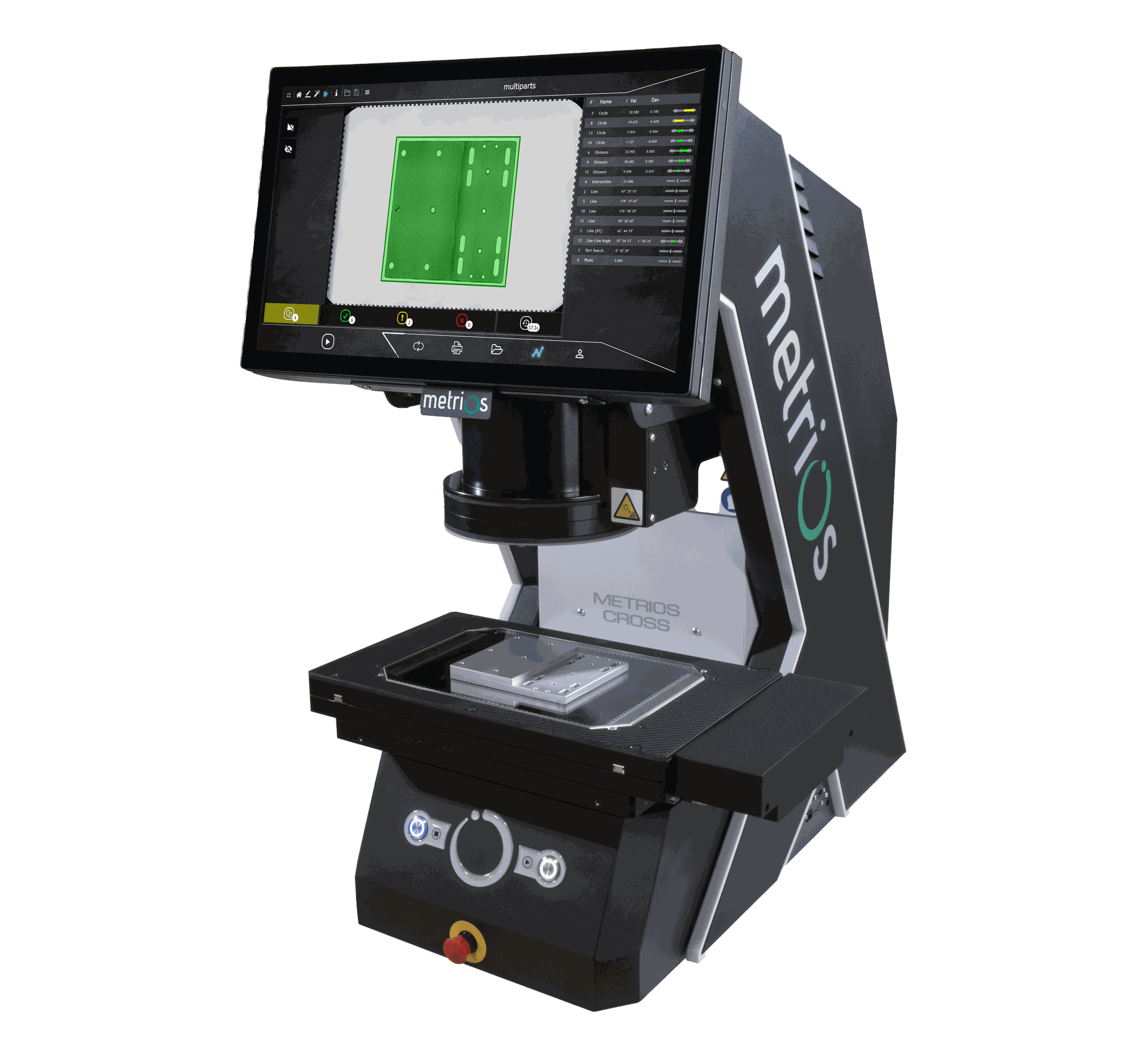

Metrios Cross
The system with the most diverse applications, as it adapts to the inspection needs of multiple parts and larger individual components, even rubber parts.
Metrios HD Cross
For small, hard-to-handle components and large parts with barely visible details. The large work area allows hundreds of elements to be placed freely on its stage.
Metrios 332
Sensor that detects the parts on the 300x300x200 mm stage with Z axis, which supports up to 20 Kg.
Field of view of the main camera: | 47 x 47 mm |
Field of view of the Ultra HD Sensor: | 3 x 2 mm |
Measurement area of the main camera: | 305 x 305 mm |
Measurement area of the Ultra HD Sensor: | 235 x 235 mm covered by all sensors |
Accuracy in the field of view of the main camera: | (2.5+0.01L[mm])(μm)
|
Accuracy in the field of view of the Ultra HD Sensor: | (2.5+0.01L[mm])(μm) |
Accuracy in the stage (X, Y axes) of the main camera: | (3.5+0.01L[mm])(μm) |
Accuracy in the stage (X, Y axes) of the Ultra HD Sensor: | (3.5+0.01L[mm])(μm) |
For dimensioning prismatic geometries,with measurement on the "Z" axis
300 x 300 mm XY, combined with the ability to measure parts up to 200 mm on the Z axis. Work area that supports up to 20 Kg of weight.
Metrios 332
Field of view: | 23 x 23 mm |
Measurement Area: | 200 x 100 mm (with Z axis) |
Accuracy in the camera's field of view: | (2.5+0.01L[mm])(μm)
|
Accuracy on the stage (X, Y axes): | (3.5+0.01L[mm])(μm) |
Save time and save onunnecessary accessories
It does not require components to be oriented or held. They are placed on the stage, and Metrios finds, aligns, and measures them automatically, in addition to loading the corresponding measurement program after recognizing the part. Perfect for different productions.
Metrios HD Cross
Repetitive measurements?Auto-play
Switching from measuring one batch to another without any problem. Metrios detects the piece you place and runs the correct program automatically. High resolution without interference from ambient light thanks to the 8-sensor system that follows the correct orientation of the piece for optimal lighting.
Camera field of view: | 23 x 23 mm |
Measurement area of the stage: | 23 x 23 mm |
Accuracy in the camera's field of view: | (2.5+0.01L[mm])(μm)
|
Accuracy in the stage (X, Y axes): | (2.5+0.01L[mm])(μm) |
Metrios HD
Camera field of view: | 95 x 65 mm |
Stage field of view: | 265 x 200 mm |
Accuracy in the camera view: | (5+0.01L[mm])(μm) |
Accuracy in the stage (X, Y axes): | (7+0.01L[mm])(μm) |
Customized solutionsfor specific problems
The Metrios software development team is capable of customizing the system to meet the requirements of your processes, as well as calibration in compliance with the standardISO 10360-7.
Metrios Cross
The natural evolutionof the profile projector
Metrios is the automatic, repeatable, and digital alternative solution, with the best cost-benefit for any production plant or workshop.
Camera field of view: | 95 x 65 mm |
Stage field of view: | 265 x 200 mm |
Accuracy in the camera view: | (5+0.01L[mm])(μm) |
Accuracy in the stage (X, Y axes): | (7+0.01L[mm])(μm) |
